Tie Rod Concrete Formwork for Bridge Construction

Bridge construction demands precision, strength, and reliability to ensure the safety and longevity of these vital structures. HORIZON FORMWORK CO., LTD., a distinguished professional in formwork and scaffolding solutions since 2006, has been a key player in providing high - quality products and services for numerous construction projects worldwide. Their expertise in designing, manufacturing, and marketing formwork, scaffolding, and related accessories has made them a trusted name in the industry. When it comes to bridge construction, tie rod concrete formwork plays a crucial role, with formwork tie rod being an essential component. These elements, including tie rod construction formwork, work together to shape and support concrete during the bridge - building process, ensuring that the final structure meets the highest standards of quality and durability.

The Importance of Tie Rod Concrete Formwork in Bridge Building

• Structural Integrity Assurance: Tie rod concrete formwork is fundamental to maintaining the structural integrity of bridges. During the concrete pouring process, the formwork provides a stable mold, and formwork tie rods hold the formwork panels in place, preventing them from shifting under the pressure of the wet concrete. This ensures that the bridge components, such as beams and piers, are formed with the correct dimensions and shape, contributing to the overall strength and stability of the bridge.

• Load Distribution: In bridge construction, tie rod construction formworkhelps distribute the load of the concrete evenly. The formwork tie rods, working in conjunction with other components like waler plates, transfer the pressure from the concrete to the supporting structure. This even load distribution is crucial for preventing structural failures and ensuring that the bridge can withstand the weight of vehicles, pedestrians, and environmental forces over its lifespan.

Installation Process of Tie Rod Construction Formwork

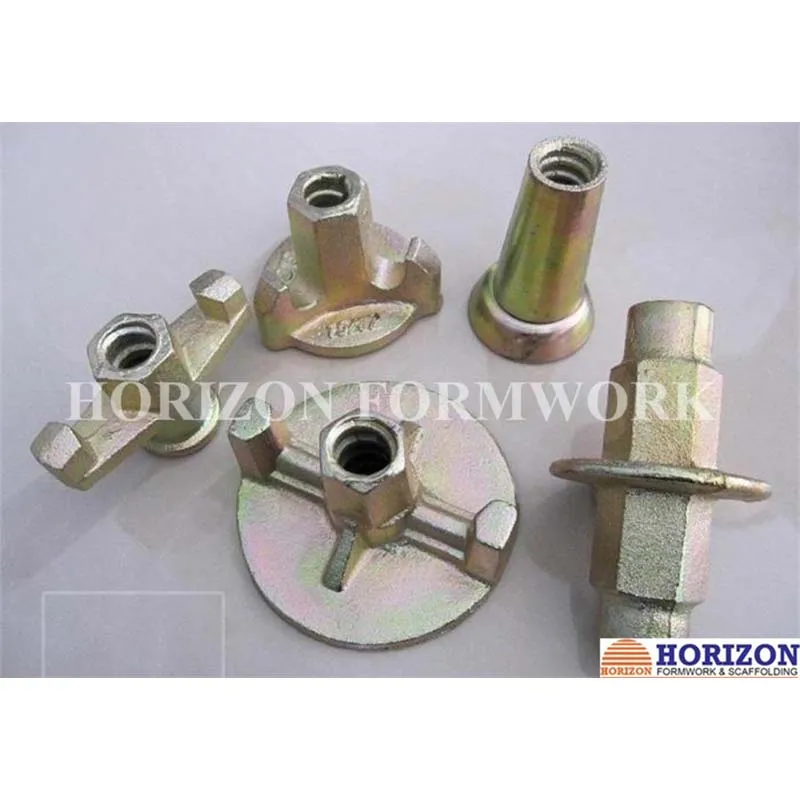

• Pre - installation Preparation: Before installing the tie rod concrete formwork, thorough preparation is essential. This includes carefully measuring and marking the positions for the formwork and tie rods according to the construction plans. All components, such as formwork tie rods, wing nuts, waler plates, and water stops, should be inspected for quality and integrity. Additionally, the construction site should be prepared, ensuring a clean and level surface for the formwork installation.

• Step - by - Step Installation: Start by setting up the formwork panels in the desired position. Then, insert the formwork tie rodsthrough the pre - drilled holes in the formwork panels. Attach the waler plates to the outside of the formwork panels, and use wing nuts to tighten the tie rods, securing the formwork in place. If water stops are required, install them at the appropriate locations. Finally, check the entire tie rod construction formwork system for stability and make any necessary adjustments before pouring the concrete.

Maintenance and Care of Tie Rod Concrete Formwork

• Regular Inspections: During and after the bridge construction process, regular inspections of the tie rod concrete formworkare crucial. Check for any signs of damage, such as bent or broken formwork tie rods, loose wing nuts, or damaged waler plates. Inspect the formwork panels for cracks or warping. Early detection of issues allows for prompt repairs, preventing more serious problems that could affect the quality of the bridge construction.

• Cleaning and Storage: After use, clean the tie rod construction formworkcomponents thoroughly to remove any concrete residues, dirt, or debris. This helps maintain the quality of the components and prevents corrosion. Store the components in a dry and protected area, stacking them properly to avoid damage. Proper maintenance and storage can extend the lifespan of the tie rod concrete formwork system, making it a cost - effective choice for future bridge construction projects.

Advantages of Using Tie Rod Concrete Formwork in Bridge Construction

• Cost - Effectiveness: Tie rod concrete formworkoffers a cost - effective solution for bridge construction. The components are reusable with proper maintenance, reducing the need for frequent replacements. Additionally, the efficient installation process of tie rod construction formwork can save time and labor costs, making it an economical choice for large - scale bridge projects.

• Versatility and Adaptability: This formwork system is highly versatile and can be adapted to different bridge designs and construction requirements. Whether it's a simple beam bridge or a complex arch bridge, the tie rod concrete formworkcan be customized to fit the specific needs of the project. The ability to adjust the length and configuration of formwork tie rods and other components allows for flexibility in construction, ensuring a perfect fit for each bridge component.

Tie Rod Concrete Formwork FAQS

How Do I Ensure the Correct Tightening of Formwork Tie Rods?

To ensure the correct tightening of formwork tie rods, use a torque wrench to tighten the wing nuts to the recommended torque value specified in the construction plans or by the manufacturer. This ensures that the tie rods are tightened evenly and with the right amount of force, preventing over - tightening or under - tightening, which could lead to formwork failure or misalignment during concrete pouring.

Can Tie Rod Construction Formwork Be Used for Different Bridge Sizes?

Yes, tie rod construction formwork is highly adaptable and can be used for different bridge sizes. The components, including formwork tie rods, can be customized in length and strength to suit the specific requirements of small - scale and large - scale bridge projects. Whether it's a small pedestrian bridge or a massive highway bridge, this formwork system can be adjusted to provide the necessary support and shaping for the concrete components.

What Should I Do If a Formwork Tie Rod Breaks During Construction?

If a formwork tie rod breaks during construction, immediately stop the concrete pouring process in the affected area. Remove the broken tie rod and inspect the surrounding formwork and components for any damage. Replace the broken tie rod with a new one of the same  and ensure that it is properly installed and tightened. After replacing the tie rod, thoroughly check the stability of the formwork before resuming the concrete pouring.

How Does the Material Grade of Formwork Tie Rods Affect Their Performance?

The material grade of formwork tie rods significantly impacts their performance. For example, cold - rolled 45# steel (equal to AISI 1045) is weldable and offers a certain level of strength, suitable for many bridge construction applications. Hot - rolled tie rods with material grades like PSB830 and PSB930 have higher breaking loads but are not weldable. Choosing the right material grade based on the project's load requirements and construction methods is crucial for ensuring the reliability and safety of the tie rod concrete formwork system.

Where Can I Find More Information About Tie Rod Concrete Formwork for Bridge Construction?

For more in - depth information about tie rod concrete formwork and tie rod construction formwork for bridge construction, visit the official website of HORIZON FORMWORK CO., LTD. Their website offers a wealth of resources, including product catalogs, technical specifications, case studies, and installation guides. You can also reach out to their customer support team for personalized advice and assistance tailored to your specific bridge construction project needs.
