Bass jack & U-head jack

Bass jack & U-head jack

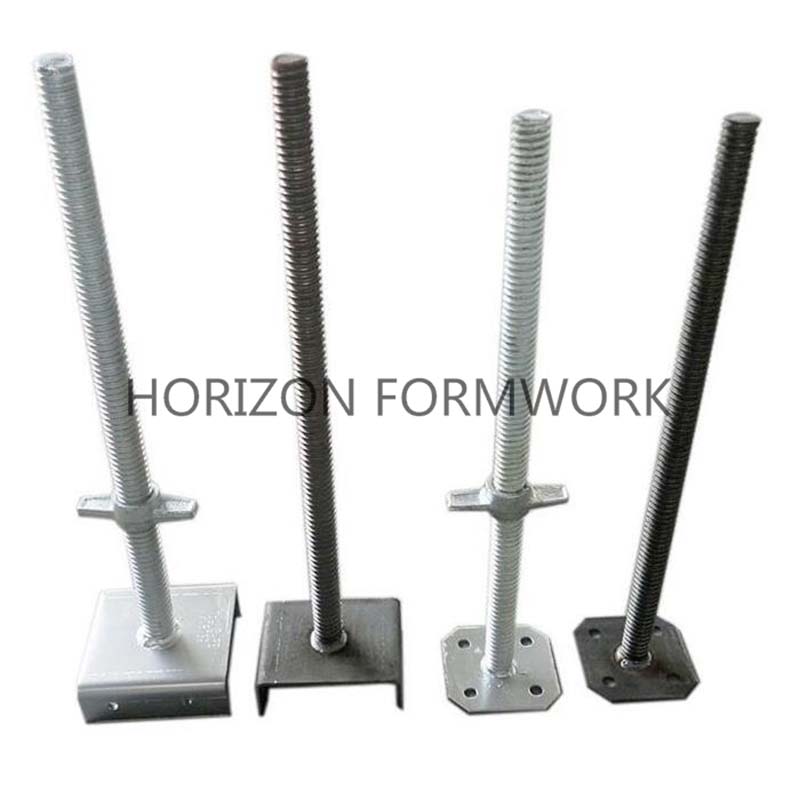

Hana ʻia mai ka pahu paʻa a me ka paipu, i ke kila māmā a me ke kila hi-tensile, hoʻohana nui ʻia ka Base Jack & U-Head jack i nā ʻōnaehana scaffolding no ka hoʻoponopono ʻana i ke kiʻekiʻe hana.



Hoʻoiho ma ke ʻano he PDF

Huahana Huahana

wehewehe

Hana ʻia mai ka pahu paʻa a me ka paipu, i ke kila māmā a me ke kila hi-tensile, hoʻohana nui ʻia ka Base Jack & U-Head jack i nā ʻōnaehana scaffolding no ka hoʻoponopono ʻana i ke kiʻekiʻe hana.

Hiki ke hoʻokomo i nā ʻano ʻōnaehana scaffold a pau, e like me nā papa, ringlock, a i ʻole nā ​​ʻōnaehana kīʻaha.

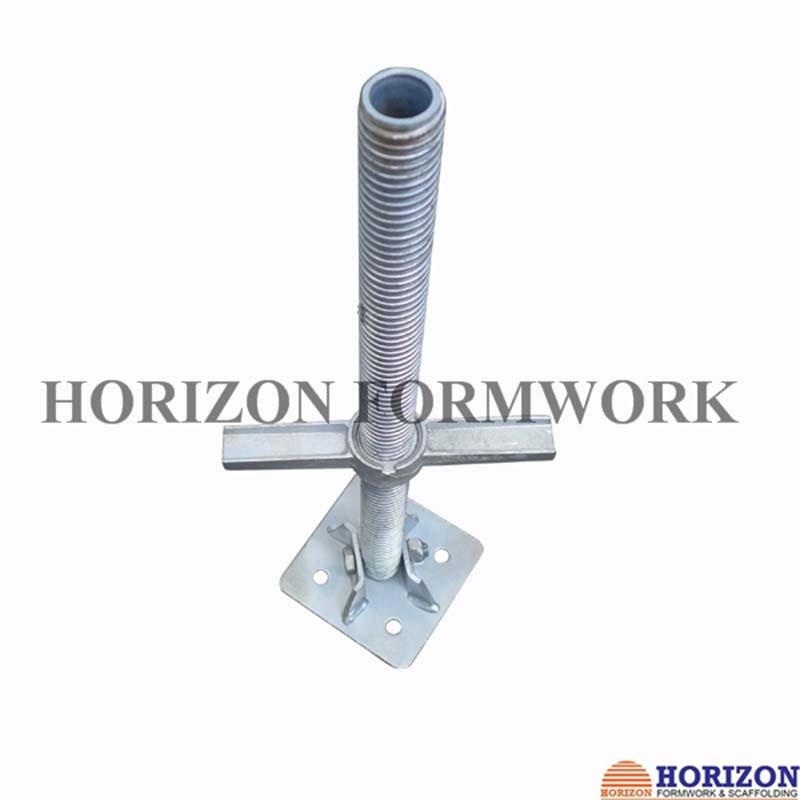

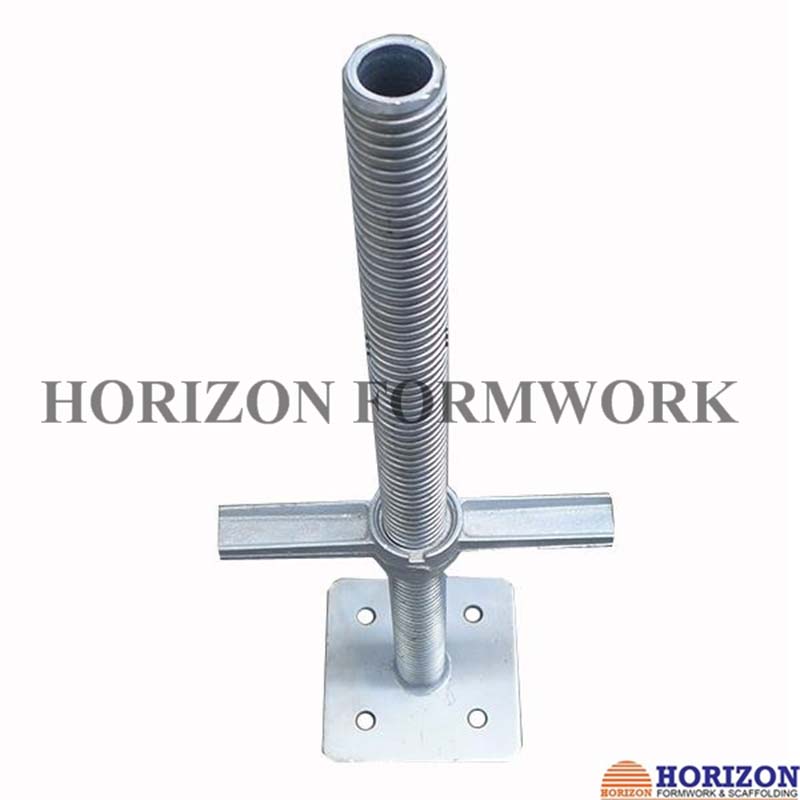

Hoʻopili ʻia ka papa kumu i ke kumu wili tubular. He puka ka papa kumu ma kēlā me kēia kihi no ka hoʻopaʻa ʻana i ka lepo.

ʻO ka jack screw me ka swivel base plate e hiki ai i kāu hoʻonohonoho scaffold ke hoʻopalike ʻia ma nā ʻili like ʻole. Hoʻohana ʻia ka nati hao ma ke kumu wili, ka ikaika kiʻekiʻe a me ka galvanized no ka lōʻihi.

Hoʻohana ʻia nā loina ACME ma ke kumu ʻūlū.

Aia ka ʻoki / ʻoki ʻia i nā wili o ke kumu wili e pale ai i ka hemo ʻana o ka nati a i ʻole e hoʻolōʻihi ʻia ka jack screw.

Hāʻawi i ka 450mm o ka hoʻoponopono.

Galvanized no ka pale ʻana / hōʻemi i ka pala.

  • Read More About hollow jack scaffolding
  • Read More About scaffolding jack head
  • Read More About u head jack scaffolding
  • Read More About scaffolding jack base factories
  • Read More About u head jack scaffolding
  • Read More About u head jack scaffolding

Jack Base

Read More About scaffolding jack head

Ka nui o ka wili / paipu (mm)

Papa kumu (mm)

Nut (kg)

Kaumaha (kg)

Ø30(solid) x 400 (600)

120 x 120 x 5

0.25

2.75 (3.72)

Ø32(solid) x 400 (600)

120 x 120 x 5

0.30

3.10 (4.20)

Ø34(solid) x 400 (600)

120 x 120 x 5

0.40

3.50 (4.76)

Ø34(hollow) x 4 x 400 (600)

150 x 150 x 6

0.55

2.80 (3.39)

Ø38(hollow) x 4 x 400 (600)

150 x 150 x 6

0.50

2.90 (3.60)

Ø48(hollow) x 4 (5) x 600

150 x 150 x 8

1.00

5.00 (5.60)

Ø48(hollow) x 4 (5) x 820

150 x 150 x 8

1.00

6.00 (6.80)

U-Poʻo Jack

Read More About U head jack scaffolding

Ka nui o ka wili / paipu (mm)

Papa kumu (mm)

Nut (kg)

Kaumaha (kg)

Ø30(solid) x 400 (600)

150 x 120 x 50 x 5

0.25

3.36 (4.33)

Ø32(solid) x 400 (600)

150 x 120 x 50 x 5

0.30

3.70 (4.81)

Ø34(solid) x 400 (600)

150 x 120 x 50 x 5

0.40

4.10 (5.37)

Ø34(hollow) x 4 x 400 (600)

150 x 120 x 50 x 6

0.55

2.91 (3.74)

Ø38(hollow) x 4 x 400 (600)

150 x 150 x 50 x 6

0.50

3.61 (4.28)

Ø48(hollow) x 4 (5) x 600

180 x 150 x 50 x 8

1.00

6.24 (6.82)

Ø48(hollow) x 4 (5) x 820

180 x 150 x 50 x 8

1.00

7.20 (8.00)
  1. 1. surface treatment: painted, galvanized, HDG.
    2. Available size: 400mm, 600mm, 700mm, 800mm, or customized size
    3. Diameter: 30mm, 32mm, 34mm, 38mm, or customized size
    4. Base plate: 120*120*4mm, 140*140*4mm
    5: Customized size are available.
