Ringlock scaffolding system

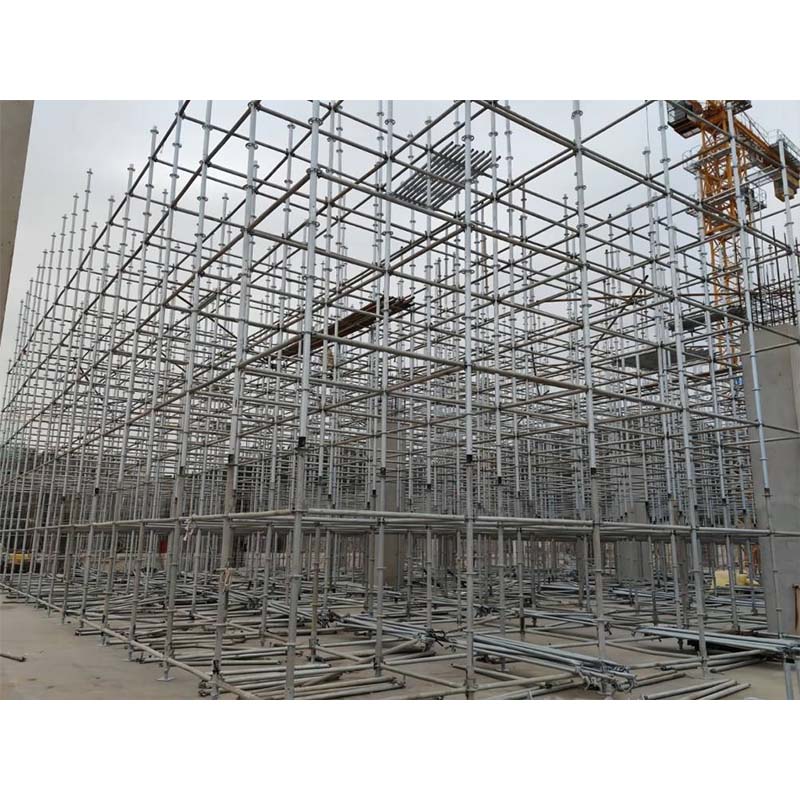

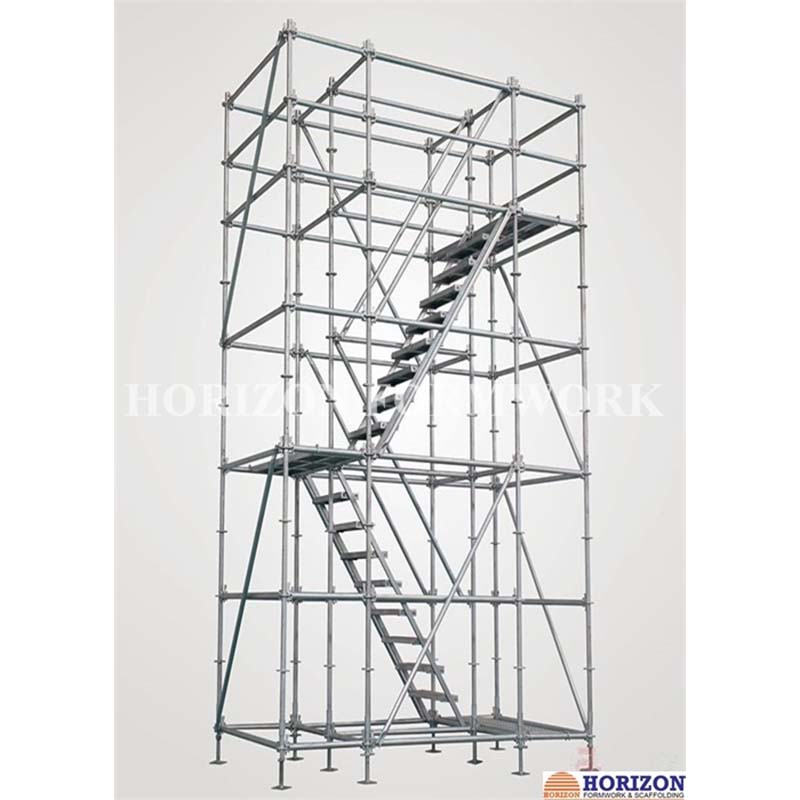

Hoʻolālā kūikawā ʻia ʻo Ringlock Scaffolding System no ka hana hana kaumaha, me kahi ala maʻalahi o ka hui ʻana e nā laka a me ka paipu. Hiki ke hoʻohana ʻia i nā hana pāʻoihana a me nā ʻoihana, e like me: stair tower, alahaka kākoʻo, tunnel support, power plant etc.

E hoʻouna i ka leka uila iā mākou Hoʻoiho ma ke ʻano he PDF

Huahana Huahana

wehewehe

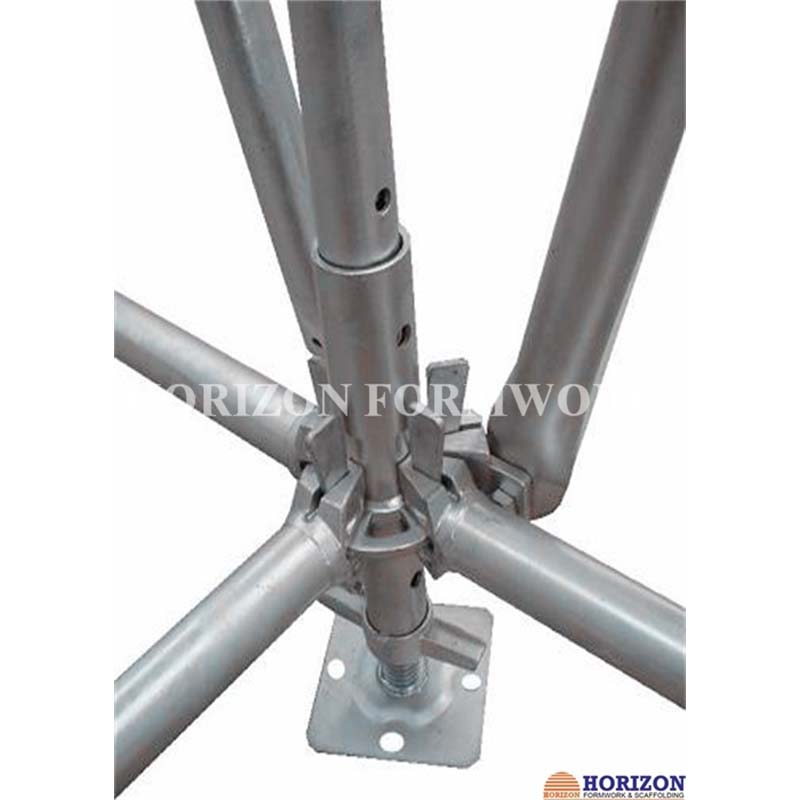

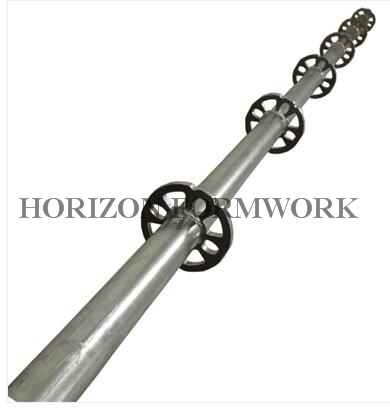

Made of high-strength steel tube, standards are the vertical members of Ringlock scaffolding system. Rosettes are welded on the standards every 0.5m intervals and provide the integral node connection, in which the wedge connectors assemble. Built-in spigots are equipped for end-to-end connections. A scaffold tube, 48.3 mm diameter and 3.25 mm wall thickness, can also be connected vertically to the posts.

The standards are compatible with other ringlock scaffolding systems. The standard provides the vertical support for scaffolding. The spigot is permanently fixed in place.

ʻO Ledgers nā lālā ākea o ka scaffolding Ringlock. Hāʻawi lākou i ke kākoʻo ākea no nā ukana a me nā papa. Hiki ke hoʻohana ʻia nā Ledgers e like me ke kaʻa waena a me luna a i ʻole nā lima kiaʻi.

Diagonal Braces are used for the lateral bracing of Ringlock scaffolding system. They can also be used as compression and tension members for cantilevers where they transmit loads back into the main scaffold structure. Diagonal Braces are also used for handrails in the Ringlock Steel Stair System. Other sizes are available on request.

Hoʻopili ʻia ka pale papa Ringlock i ka rosette maʻamau maʻamau no ka hoʻonohonoho ʻana i nā papa scaffold. Hoʻohana ʻia kēia mau pale papa ringlock i hui pū me ka papa scaffold steel a me nā ala kiaʻi palekana kūpono e ʻae ai i nā papa kuhikuhi. Hāʻawi lākou iā ʻoe e hana kokoke i kāu hale.

Nā kikoʻī

Paipu waiwai	Paipu kila ikaika kiʻekiʻe 48.3mm X 3.0mm / 3.25mm
Papa kila	Q235 a i ʻole Q345
Ka lōʻihi maʻamau	L=4000mm, 3000mm, 2500mm, 2000mm, 1500mm, 1000mm, 500mm
Ledger Length	L=3000mm, 2500mm, 2000mm, 1500mm, 1200mm, 1000mm
mamao Rosette	500mm,
Hoʻopau ʻili	HDG, uhi ʻia ka zinc, uhi ʻia i ka pauka
Nā nui ʻē aʻe	Loaʻa nā nui i hoʻonohonoho ʻia ma ke noi kūikawā
