The Operational Efficiency of Table Formwork for Slab Construction

The primary objective of table formwork for slab construction is to transform a labor-intensive manual process into a mechanized, repetitive operation. In traditional methods, workers must assemble individual shores, beams, and plywood sheets for every floor, only to dismantle them entirely a few days later. A table system, by contrast, treats a large section of the slab mold as a single, unified piece of equipment.

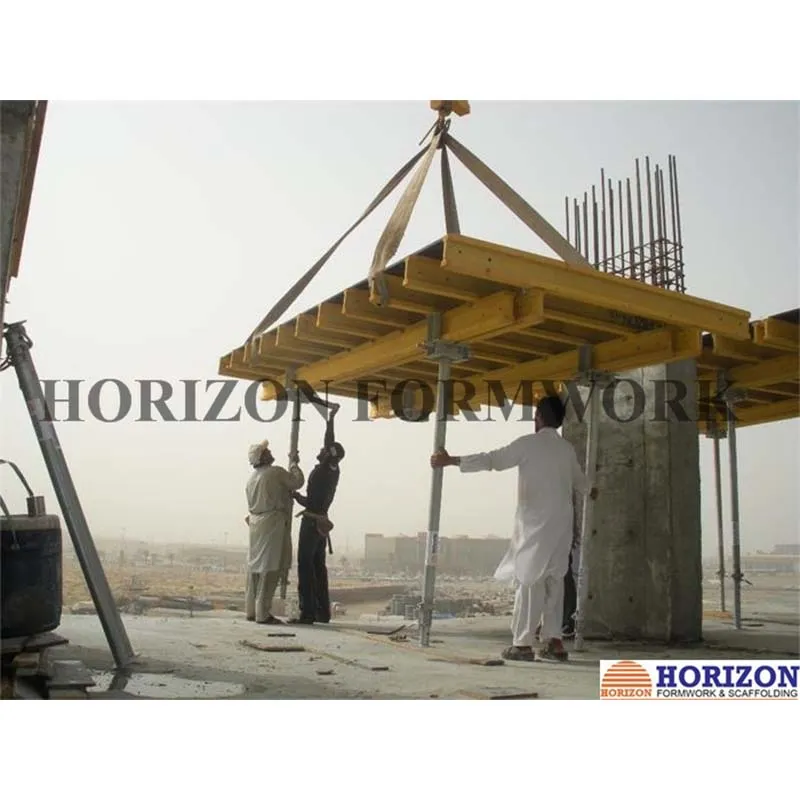

A typical unit within table formwork for slab construction consists of a high-grade plywood face, primary and secondary timber or aluminum beams, and integrated folding legs. These "tables" are pre-assembled on the ground and then lifted into position by a crane. Once the concrete has reached the required strength, the table is lowered slightly, rolled to the edge of the building, and "cycled" to the next level using a crane fork or a specialized lifting attachment.

The impact on the construction timeline is profound. By reducing the number of individual components that need to be handled at height, contractors can often achieve a "one-floor-per-week" cycle. Furthermore, because the plywood face remains attached to the frame throughout the project, the risk of damage during transport is minimized, resulting in a consistent, high-quality concrete finish across all floors.

Technical Advantages of Assembled Table Formwork Systems

When a contractor opts for an assembled table formwork solution, they are prioritizing precision and structural integrity. These systems are typically engineered in a factory setting or a dedicated on-site assembly area, ensuring that every bolt, connector, and beam is aligned according to strict engineering tolerances.

One of the standout features of assembled table formwork is its adaptability to different building geometries. While the system is inherently modular, it can be fitted with "compensation areas" or telescopic edge beams to accommodate irregular column layouts or cantilevered balconies. The rigidity of the assembled frame ensures that the slab maintains a perfectly level profile, which is critical for the subsequent installation of glass facades and interior flooring.

Safety is another area where assembled table formwork excels. Most high-end systems come with integrated edge protection, including guardrails and toe boards, that move with the table. This means that as soon as the table is flown into place and leveled, the workers have a safe, enclosed environment in which to lay reinforcement steel and pour concrete. This "built-in safety" significantly reduces the reliance on temporary safety netting and external scaffolding, lowering both costs and insurance risks.

Structural Reliability of the Adjustable Post Shore for Slab Formwork

To support this load safely until the slab gains its own structural strength, the system relies on the adjustable post shore for slab formwork. These vertical supports are the "muscles" of the system, providing the necessary compressive strength to keep the table stable and level.

Modern adjustable post shore for slab formwork units are typically made of high-strength galvanized steel or aluminum. The "adjustable" nature is facilitated by a threaded collar or a pin-and-hole system, allowing for millimeter-precise leveling. This precision is vital because concrete slabs must often be "pre-cambered"—slightly arched upward—to account for the natural deflection that occurs when the supports are eventually removed.

In heavy-duty applications, such as transfer slabs or thick podium levels, these shores can be braced together to form "shoring towers." The durability of the adjustable post shore for slab formwork is also a key economic factor; a high-quality, galvanized shore can be reused on dozens of projects over several years, making it a highly sustainable asset for any construction firm.

Maximizing Reusability with Slab Table Formwork

In the context of sustainable "Green Building," the choice of slab table formwork represents a commitment to waste reduction. Traditional timber formwork creates a massive amount of "construction debris" because the wood is often cut, nailed, and discarded after only a few uses. In contrast, a well-maintained table system is a long-term investment.

The plywood face of a slab table formwork unit is usually treated with a high-density overlay (HDO) or phenolic film, which protects the wood from the alkaline moisture of the concrete. With proper cleaning and the use of high-quality release agents, a single plywood face can last for 30 to 50 pours. When the plywood eventually wears out, it can be replaced while the steel or aluminum frame remains in service for hundreds of additional cycles.

The logistics of slab table formwork also contribute to its sustainability. Because the tables are moved as complete units, there is significantly less "small-item" loss on-site—fewer lost bolts, pins, and short timber offcuts that typically end up in landfills. This streamlined inventory management not only cleans up the job site but also ensures that the project remains within its environmental compliance targets.

Slab Table Formwork : Engineering the Future of Concrete Slabs

The horizontal elements of a building are its most repetitive and labor-intensive features. By integrating table formwork for slab construction with the structural reliability of an adjustable post shore for slab formwork, the modern construction industry has found a way to balance speed with safety. The move toward assembled table formwork reflects a broader industrial trend: the transition from "building on-site" to "assembling on-site."

As urban centers continue to grow and the demand for high-density housing and office space rises, the efficiency of slab table formwork will remain a critical driver of project success. Contractors who master these systems can offer faster delivery times, safer working environments, and a superior finished product. In the end, the technology used to shape the concrete is just as important as the concrete itself, providing the framework upon which our modern cities are built.
