Column formwork

Column formwork

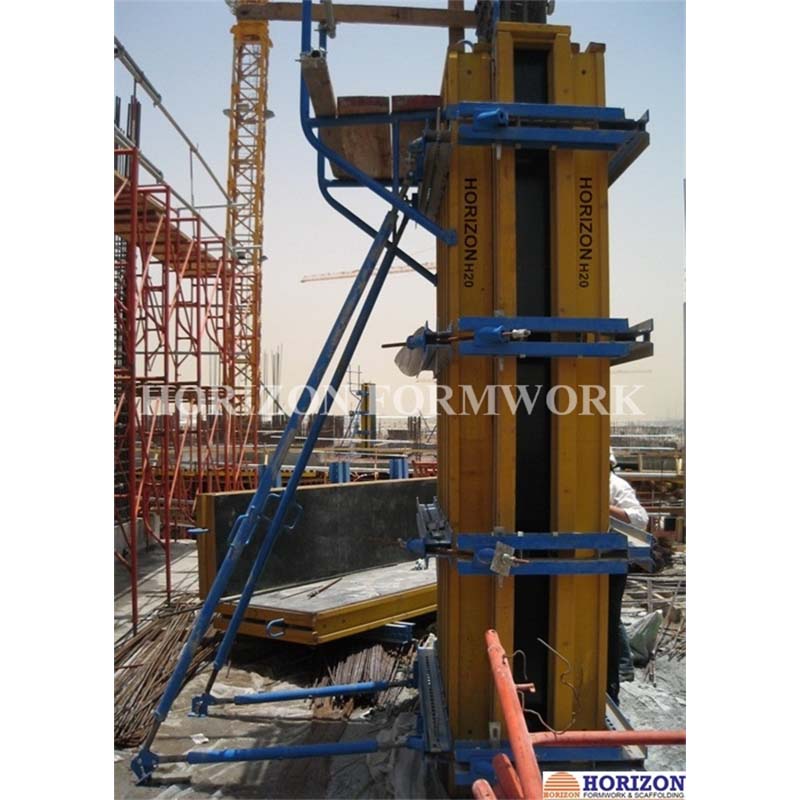

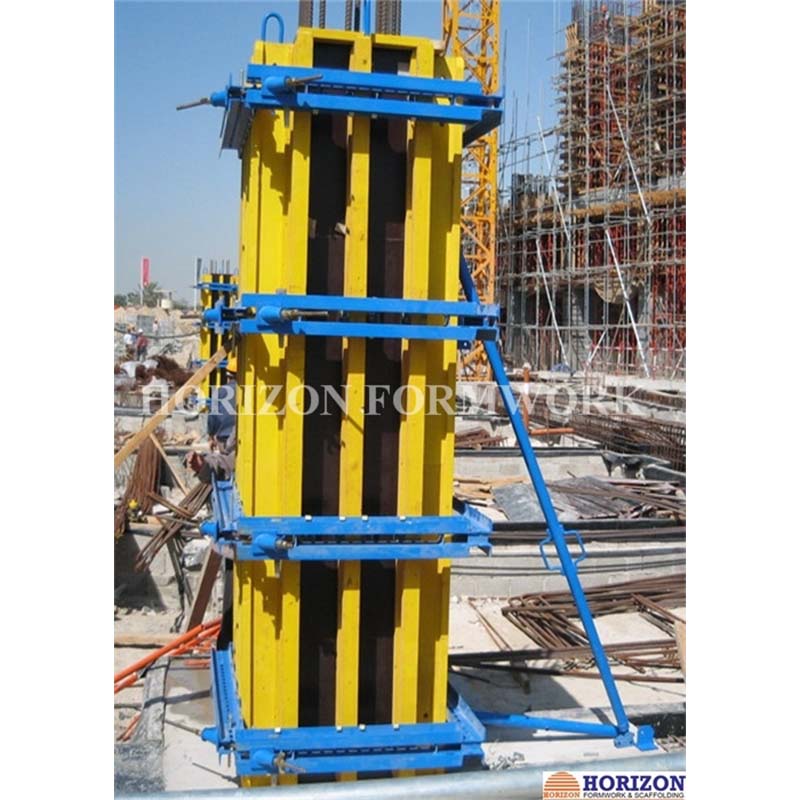

Similar as wall formwork, the column formwork mainly consists of: timber beam H20, steel waling, plywood and beam clamp. These components can be combined for all shapes, even with the restructuring of wall formwork units when a frequent change of the building structure plans happens.



Download as PDF

Product Detail

Descriptions

High flexibility with only a few main components, the column form can meet any construction requirements. Timber beam H20, steel waling, plywood and clamp etc.. These components can be combined for all shapes, even with the restructuring of wall formwork units when a frequent change of the building structure plans happens.

  • Read More About oem circular formwork columns



  • Read More About inclined column formwork



  • Read More About oem adjustable column formwork



  • Read More About oem column formworks

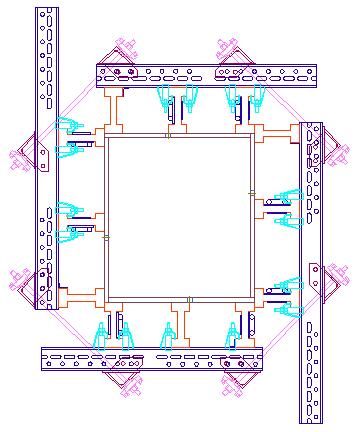

There are two options of forming columns: one is by right-angle waling connector & tie yoke system; another is by tie yoke only.

Taking examples as following:

Column size: 700 x 700mm

Read More About square column formwork

Column size: 500 x 500mm

Read More About column shuttering

Column size: 1000 x 800mm

Read More About formwork for columns

Column size: 600 x 500mm

Read More About column formworks







Advantages

  1. 1. Can create any shape and size of wall formwork with any thickness.
    2. Can choose whichever form face material best meets your requirements - e.g. for smooth fair-faced concrete.
    3. Depending on the concrete pressure required, the beams and the steel waling are spaced closer or apart. This ensures optimum form-work design and the greatest economy of materials.

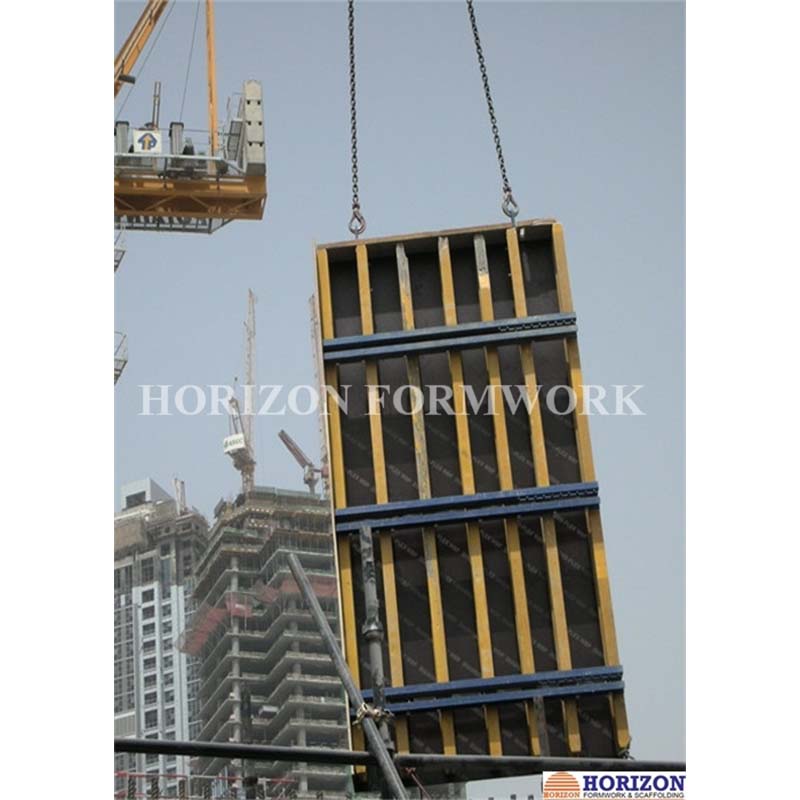

    4. Can be pre-assembled on your site or before arrival at your site, saving time, cost, and space for you.
