Wall formwork

High flexibility with a few main components can meet any construction requirements. Timber beam H20, steel waling, plywood and clamp etc.. These components can be combined for all shapes, even with the restructuring of wall formwork units when a frequent change of the building structure plans happens.

Send email to us Download as PDF

Product Detail

Wall formwork description

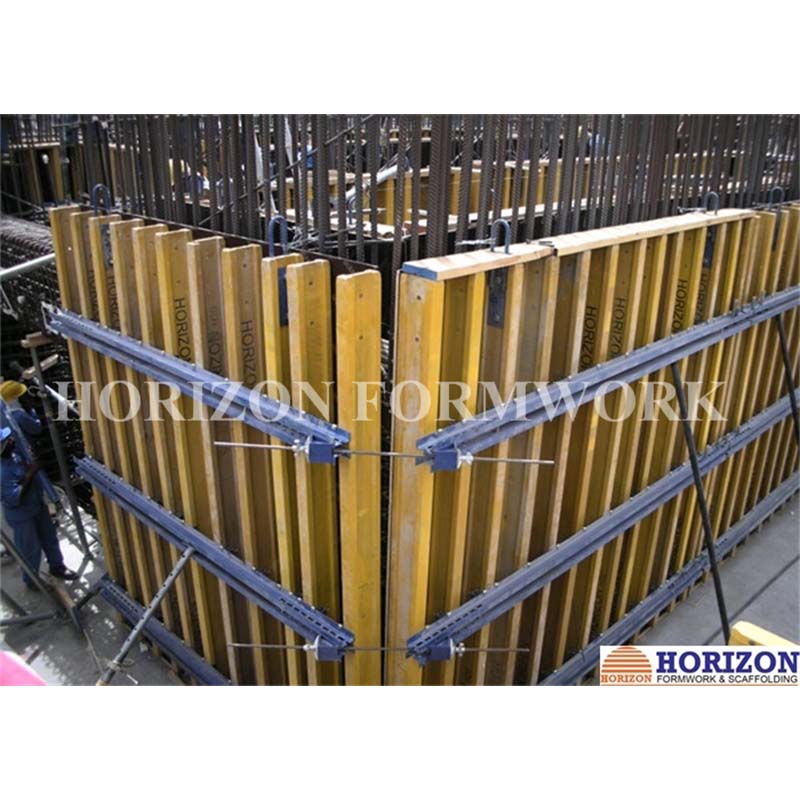

HORIZON wall formwork consists of H20 timber beam, steel walings and other connecting parts. These components can be assembled formwork panels in different widths and heights, depending on the H20 beam length up to 6.0m.

The H20 beam is the basic component of all the elements, with nominal lengths of 0.9 m up to 6.0 m. It has an extremely high load-bearing capacity with a weight of only 4.80 kg/m, which results in fewer walings and tie positions. H20 timber beam can be applied to all wall heights and elements are assembled together appropriately according to each specific project.

Steel walings required are produced in accordance with specific project customized lengths. The longitudinally-shaped holes in the steel waling and waling connectors result in continuously variable tight connections (tension and compression). Every waling joint is tightly connected by means of a waling connector and four wedge pins.

Panel struts (also called “Push-pull prop) are mounted on the steel waling, helping formwork panels erection. The length of panel struts are selected according to the height of the formwork panels.

Using the top scaffold bracket, working and concreting platforms are mounted to the wall formwork.

This consists of: top scaffold bracket, planks, steel pipes and pipe couplers.

Wall formwork elements

Components	Diagram / photo	Specification / description
Wall formwork panel		For all vertical formworks
H20 Timber beam		Water proof treated Height: 200mm Width: 80mm Length: as per table size
Steel waling		Painted, powder coated [12 steel channel
Flange clamp		Galvanized To connect steel waling and H20 beams
Panel strut (Push-pull prop)		Painted To help formwork panel erection
Waling connector 80		Painted Used for formwork panels alignment
Corner connector 60x60		Painted Used for forming inner corner formwork with wedge pins
Top scaffold bracket		Painted, severs as safety working platform
