Climbing Formwork CB240

Climbing Formwork CB240

Climbing Formwork CB240 is a crane dependent climbing system and support structure widely used to pour high walls. It performs as a loading-bearing platform as well as a safe working platform.

Depending on the length of the platform, the Climbing System is applicable to heights of more than 100 meters over ground and allows a maximum formwork height of up to 5.40 m.



Download as PDF

Product Detail

Descriptions

Platform width:      2.4m
Roll-back system:   70 cm with carriage and rack system
Finishing platform:  for removing the climbing cone, polishing concrete surface etc.
Anchor system:      should be pre-fixed into the formwork and left in the concrete after pouring.
Formwork:            can be moved horizontally, vertically and tilted to meet site requirement.
Main platform:       provide workers a safe working platform
Finishing platform:  there is an access to the main platform by using a safety ladder.

  • Read More About china semi automatic climbing formwork



  • Read More About climbing formwork for core wall



  • Read More About china climbing formwork system



  • Read More About china climbing system formwork



Advantages

  • Compatible with all Construccion wall formworks.
  • The sets made up of brackets and formwork panels are movedto the next pouring step with onesingle crane lift.
  • Adaptable to any structures,including straight, inclined andcircular walls.
  • It is possible to build working platforms at different levels.The access to the platformsis provided by safety ladders.
  • All brackets include all the connectors to fix handrails, push-pullprops and other accessories.
  • The climbing brackets allow rolling-back the formwork panelsusing a system, formed by a carriage and a rack, incorporated inthese brackets.
  • Formwork’s vertical adjusting and plumbing is completedwithleveling screw jacks and push-pull props.
  • Bracketsare anchored to the wall with anchor cone system.

Climbing procedure

Read More About climbing formworkStep 1

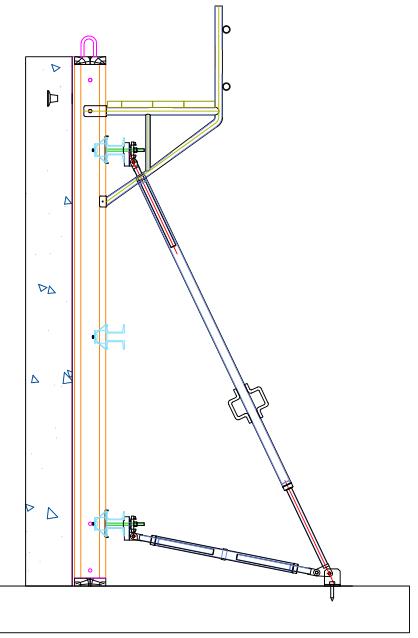

The first pouring is to be completed by using the proper wall elements and has to be exactly

aligned with adjusting struts.

Read More About climbing formworks

Step 2

The completely pre-assembled climbing scaffold units consisting of

climbing brackets with plank bottom and bracing have to be attached to the bracket anchoring and secured.

Then the formwork and the move-off carriage together with the aligning beam has to be positioned on the brackets and fixed.

Read More About climbing formwork system

Step 3

After shifting the climbing scaffold unit to the next pouring position the finishing platform is to be mounted to the brackets to complete the climbing system.

Read More About climbing system formwork

Step 4

Release and remove bolts that fixing the positioning anchor point.

Loosen and remove tie-rod

Loosen the wedges of the carriage unit.

Read More About self climbing formwork system

Step 5

Retract the carriage and lock it with wedge.

Install upper climbing cones

Loosen wind securing device, if any

Remove the lower climbing cone



Read More About automatic climbing formwork system

Step 6

Adjust the carriage into the common center of gravity and lock it again.

Attach the crane sling to the vertical waling

Remove the security bolts of the bracket

Lift the climbing bracket by crane and attach it to the next prepared climbing cone.

Insert and lock the security bolts again.

Install the wind-load device, if required.

Read More About auto climbing formwork system

Step 7

Move the carriage back and lock it by wedge.

Clean the formwork.

Install reinforcement bars.

Read More About climbing formworks

Step 8

Move the formwork forward until lower  end rests against top of the finished section of the wall

Adjust formwork vertically by means of push-pull brace.

Fix tie-rods for the wall formwork
