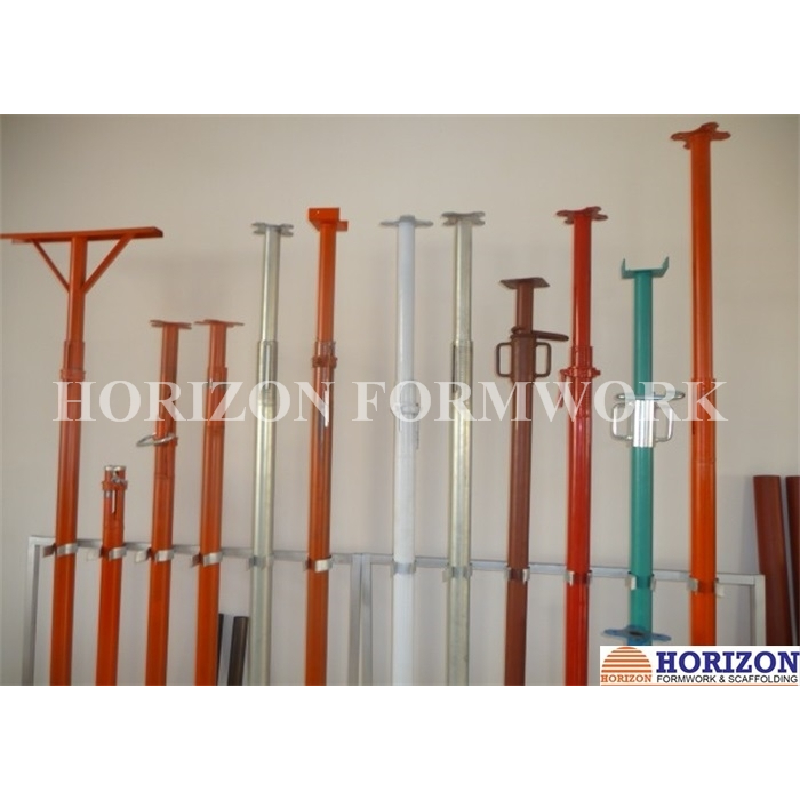

Shoring prop-Light Duty
Description
Accessoires légers are used for supporting work in buildings construction, with working height range from 0,50-0,80 m up to 3,00-5,50 m.
Two end plates, upper and lower plates, serve to give stability to the steel prop.
The inner tube is Ø 48mm / 40mm (thickness from 2 mm to 4.0mm) with holes to adjust the working height with help of the pin.
The outer tube is Ø56mm / 60mm (thickness from 1.6 mm to 2.5mm).
The pin diameter is between 12 and 14 mm, with a special design that does not allow its fall.

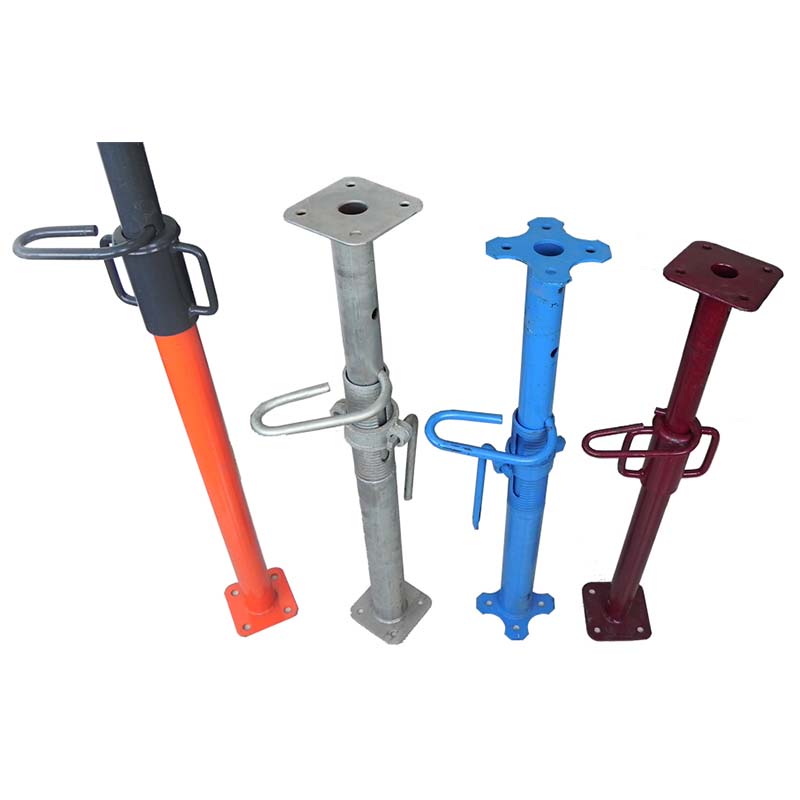

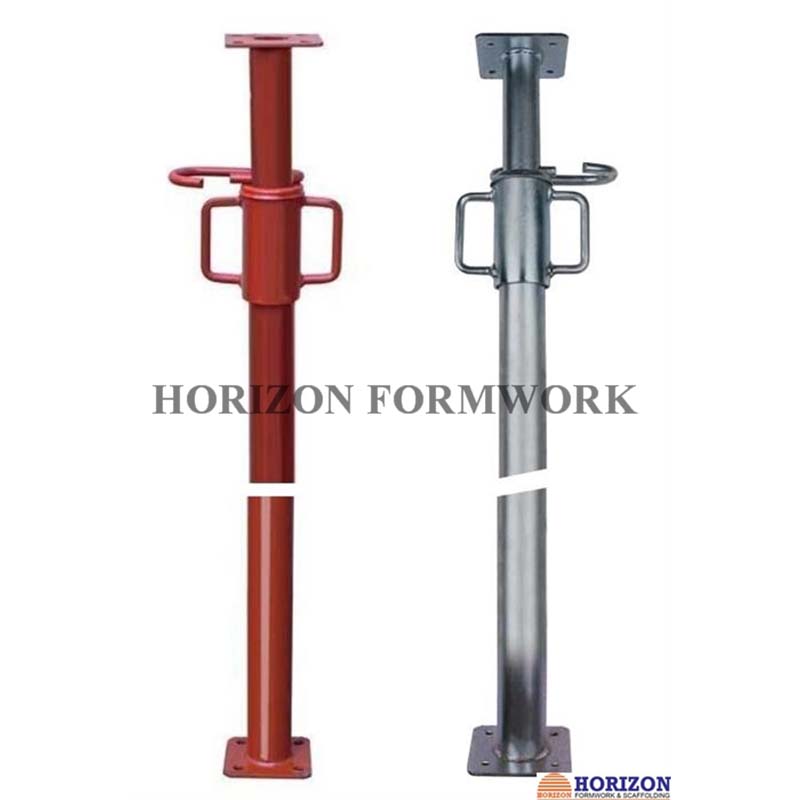

The thread is covered by a cup-type nut (internal thread) that has 2 side handles for easy handling (Cast nut with external thread is also available.).
A steel ring plate is also equipped on the nut that prevents concrete materials falling into the nut and get stuck.
spécification
Plage de hauteur : 1,5 m-3,0 m, 2,0 m-3,5 m, 2,2 m-4,0 m, 3,0 m-5,5 m
Diamètre du tube intérieur (mm): 40/48/60
Diamètre du tube extérieur (mm): 48/56/60/75
Wall thickness: from 1.6mm to 3.0mm
Adjustable device: Nut style, Cup style
Surface finished: painted / galvanized
Exigence spéciale disponible sur demande.
|
Plage de hauteur (m) |
Tube extérieur (mm) |
Tube interne (mm) |
Épaisseur (mm) |
Dispositif de réglage |
|
1,7 m-3,0 m |
60 / 57 / 48 |
48 / 40 |
1.6-4.0 |
Poste fil / Int. fil |
|
2,0 m-3,5 m |
60 / 57 / 48 |
48 / 40 |
1.6-4.0 |
Poste fil / Int. fil |
|
2,2 m-4,0 m |
60 / 57 / 48 |
48 / 40 |
1.6-4.0 |
Poste fil / Int. fil |
|
2,5 m-4,5 m |
60 / 57 / 48 |
48 / 40 |
1.6-4.0 |
Poste fil / Int. fil |
|
3,0 m-5,5 m |
60 / 57 / 48 |
48 / 40 |
1.6-4.0 |
Poste fil / Int. fil |
Tous les étais peuvent bien fonctionner avec les systèmes de coffrage Euro.
