Timber beam H20

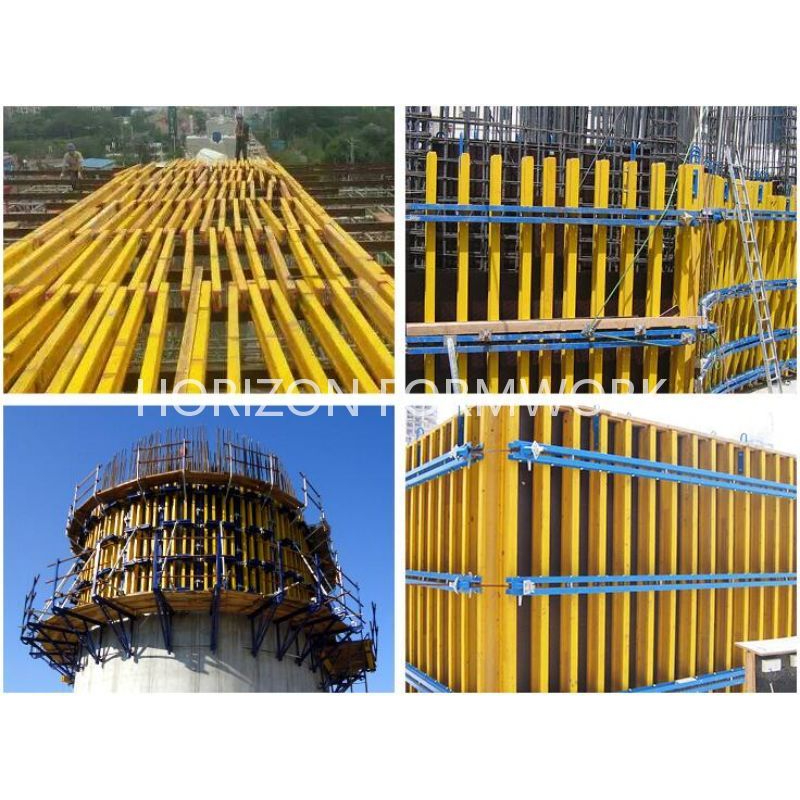

The H20 beam is an economical alternative to each project formwork, used for wall, column and slab formwork. It is definitely the best solution no matter when it comes to complicated ground and basement plans or to numerous uniformly typical applications with the same wall heights and slab structures.

Send email to us Download as PDF

Product Detail

Description

The timber beam H20 is an economical alternative to each project formwork, used for wall, column and slab formwork. It is definitely the best solution no matter when it comes to complicated ground and basement plans or to numerous uniformly typical applications with the same wall heights and slab structures.

The timber beam H20 is sturdy, easy to handle and at a weight of only 4.8 kg/m offers a high load-bearing capacity at large distances of walings.

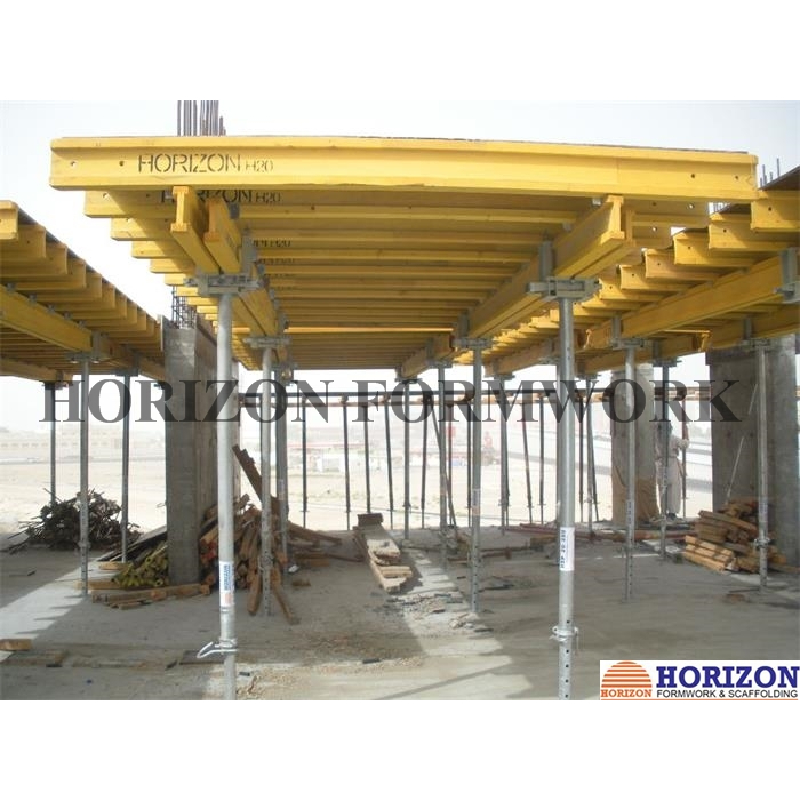

The timber beam H20 are clamped onto the steel walings, allowing the formwork elements to be assembled quickly and simply. The assembly is done as easily as the disassembly.

Acting as the basic element of the formwork systems, H20 timber beam is especially practical due to its low weight, good statical figures and exacting workmanship in details. It is produced in an automatically controlled production line. Wood quality and splicing is continually carefully checked here. A very long duration of life is assured by its high-grade bonding and its rounded beam ends.

Application

1. Light weight and strong rigidity.
2. Stable in shape due to the highly compressed panels.
3. Water resistant and anti-corrosion treatment allows the beam more durable in site use.
4. Standard size can match well with othersystems., universally used all over the world.
5. made of Finland spruce, water proof painted yellow.

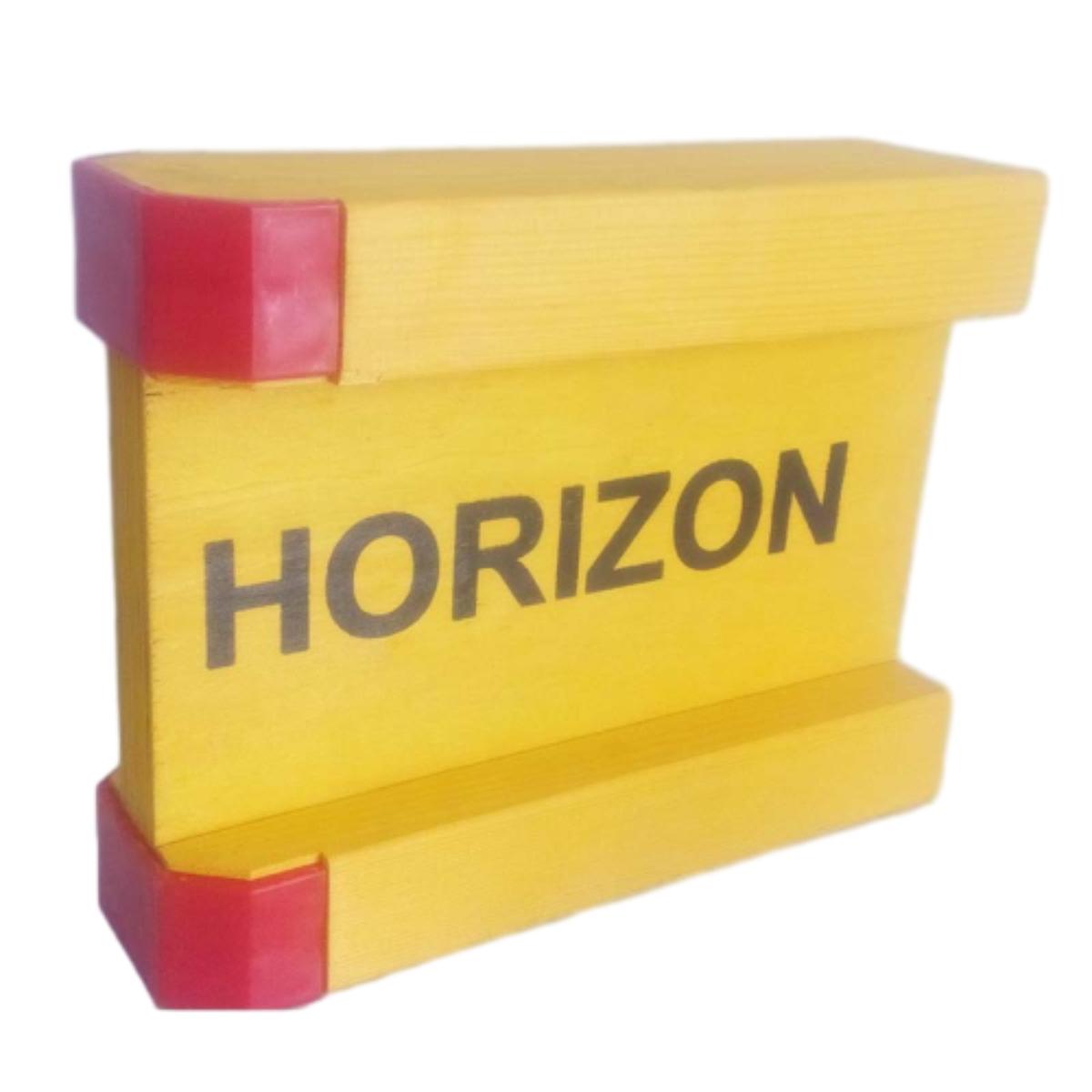

Product	HORIZON Timber beam H20
Wood species	Spruce
Wood moisture	12 % +/- 2 %
Weight	4.8 kg/m
Surface protection	Water repellent colour glaze is used to ensure the entire beam is waterproof
Chord	• Made of carefully selected spruce wood • Finger-jointed chords, solid wood cross-sections, dimensions 80 x 40 mm • Planned and chamfered to app. 0.4 mm
Web	Laminated plywood panel
Support	Beam H20 can be cut into and supported at any length (<6m)
Dimensions and tolerances	Dimension	Value	Tolerance
	Beam height	200mm	±2mm
	Chord height	40mm	± 0.6mm
	Chord width	80mm	± 0.6mm
	Web thickness	28mm	± 1.0mm
Technical specifications	Shearing force	Q=11kN
	Bending moment	M=5kNm
	Section modulus¹	W_x=461cm³
	Geometrical moment of inertia¹	I_x=4613cm⁴
Standard length	1,95 / 2,45 / 2,65 / 2,90 / 3,30 / 3,60 / 3,90 / 4,50 / 4,90 / 5,90 m, upto 8.0m

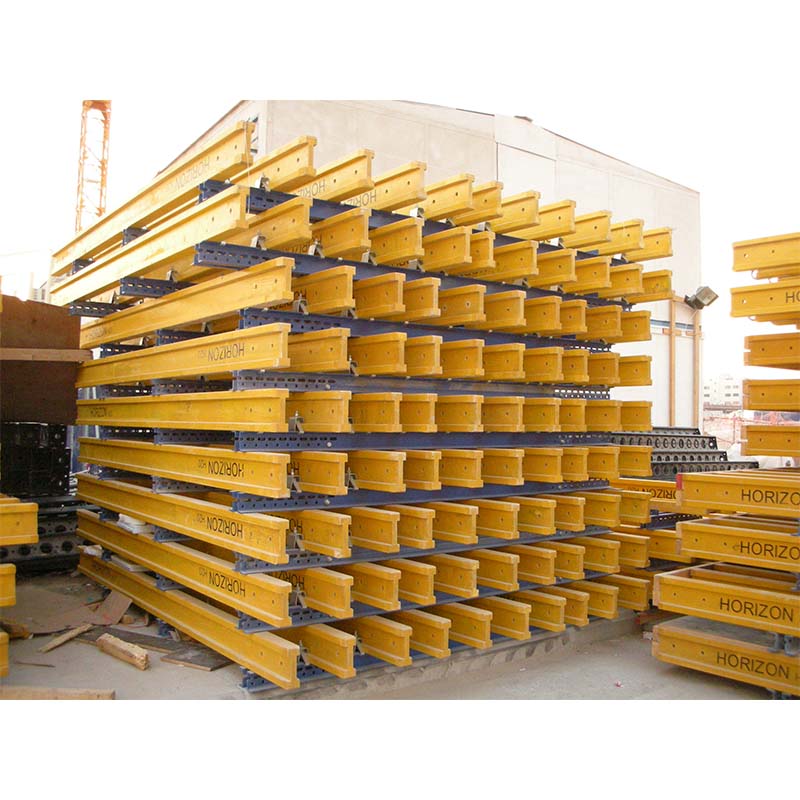

Packaging	Standard packaging of 50 pcs (or 100 pcs) each package. The packages can be easily lifted and moved with a forklift. They are ready for immediate use at the construction site.
